- Size: 2200*1080*1800mm
- Place of Origin: China
- Brand Name: BFChina
- Model Number: BFB
- Weight: 910.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

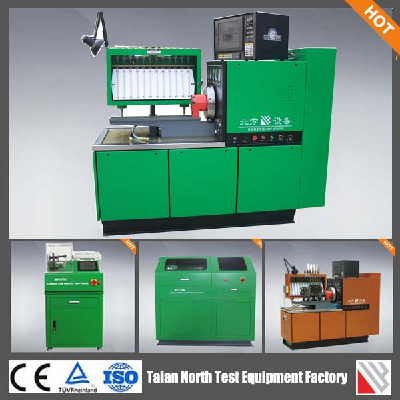

12PSB-BFB diesel fuel injection pump test bench
, like inline pumps, distributor pumps. It adopts CRT screen display and LED digital display two control systems, can perform various function's adjusting and testing to the injection pump.
12PSB-BFB auto electrical diesel fuel injection pump test bench
>>> Three system languages: Chinese, English and Russian (other languages can choose as customer's requirements).
>>> Main engine frequency conversion , manual and automatic two operating modes.
>>> Automatic mode can process multi- gears speed preset .
>>> Automatic oil measuring and counting system.
>>> Has short-circuit protection feature
>>> Two sets of air supply adjustment knobs on both sides,easy operation
>>> Automatic oil measuring plate (optional install).
12PSB-BFB auto electrical diesel fuel injection pump test bench
>>> Test each cylinder's oil supply quantity under different rotate speed.
>>> Check each cylinder's injection timing under static state.
>>> Check the performance of mechanical governor.
>>> Test the electromagnetic valve of distributor pump.
>>> Test the tightness of injection pump.
>>> Measure the pump body internal pressure and oil return pressure of distributor pump.
>>> Check the performance of pressure equalizer, pneumatic governor.
>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.
12PSB-BFB Industrial Computer Type Test Bench | 7.5KW | 11KW | 15KW | 18.5KW | ||
1 | Rotation speed range of main shaft(rpm) | 0-4000 | 0-4000 | 0-4000 | 0-4000 | |
2 | Motor output power(KW) | 7.5 | 11 | 15 | 18.5 | |
3 | Pump output power(PS) | <150 | <300 | <500 | <1000 | |
4 | Height from center line of main shaft to work table(mm) | 125 | 125 | 125 | 125 | |
5 | Rotation direction of main shaft | Positive Negative | Positive Negative | Positive Negative | Positive Negative | |
6 | Testable cylinders of injection pump | 12 | 12 | 12 | 12 | |
7 | Standard model of fuel injector | . | ||||
8 | Oil injection count range | 0-1000 | 0-1000 | 0-1000 | 0-1000 | |
9 | Capacity of oil tank(L) | 50 | 50 | 50 | 50 | |
10 | Pressure of fuel system | High | 0-3.5 | 0-3.5 | 0-3.5 | 0-3.5 |
Low | 0-0.35 | 0-0.35 | 0-0.35 | 0-0.35 | ||
11 | Supply oil capacity(L/min) | 10~20 | 10~20 | 10~20 | 10~20 | |
12 | Temperature of fuel(°c) | 40±2 | 40±2 | 40±2 | 40±2 | |
13 | Precise of fuel filter(μ) | 5 | 5 | 5 | 5 | |
14 | Capacity of measuring cup(ml) | 45 | 45 | 45/150 | 45/150 | |
15 | Pressure of air way (Mpa) | Positive | 0-0.15 | 0-0.15 | 0-0.15 | 0-0.15 |
16 | Negative | -0.05-0 | -0.05-0 | -0.05-0 | -0.05-0 | |
17 | DC voltage(V) | 12/24 | 12/24 | 12/24 | 12/24 | |
18 | Package dimension(m)(L×W×H) | 2.15×0.75×1.85 | 2.15×0.75×1.85 | 2.15×0.75×1.85 | 2.15×0.75×1.85 | |
19 | Weight(Kg) | 900 | 900 | 1050 | 1100 | |
>>> Check the accessories for our 12PSB test bench :
>>> INJECTOR TOOLS
>>> Packaging : wooden case with water-proof membrane
>>> Delivery: within 15 days after receiving the deposit
>>> Injection pump test bench:
>>>Common rail injector test bench:
>>>Common rail injector tester
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
Taian North Test Equipment Factory is appointed by the country as the professional manufacturer of oil injection pump test bench. It gets the technique support from Tianjin university, Tianjin University of technology, Shandong University of science and technology, With more than 10 years export experience, and get high reputation from our customers.
